产品简介 :

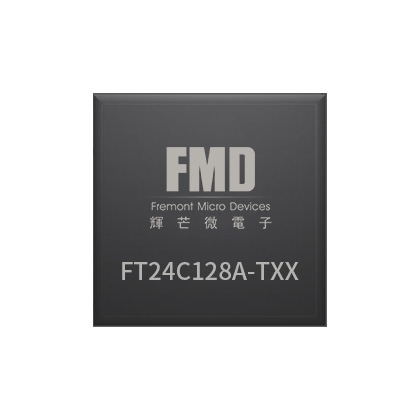

The FT24C128A series are 131,072 bits of serial Electrical Erasable and Programmable Read Only Memory, commonly known as EEPROM. They are organized as 16,384 words of 8 bits (one byte) each.  The devices are fabricated with proprietary advanced CMOS process for low power and low voltage applications.  These devices are available in standard 8-lead DIP, 8-lead SOP, 8-lead MSOP, 8-lead TSSOP, and 8-lead DFN  packages.  A standard 2-wire serial interface is used to address all read and write functions.  Our extended VCC range (1.8V to 5.5V) devices enables wide spectrum of applications.

产品特点 :

q  Low voltage and low power operations:

·         FT24C128A:                     VCC = 1.8V to 5.5V

q  64 bytes page write mode.

q  Partial page write operation allowed.

q  Internally organized: 16,384 ×8 (128K).

q  Standard 2-wire bi-directional serial interface.

q  Schmitt trigger, filtered inputs for noise protection.

q  Self-timed write cycle (5ms maximum).

q  1 MHz (2.5-5.5V), 400 kHz (1.8V) Compatibility.

q  Automatic erase before write operation.

q  Write protect pin for hardware data protection.

q  High reliability: typically 1,000,000 cycles endurance.

q  100 years data retention.

q  Industrial temperature range (-40℃ to 85℃).

q  Standard 8-lead DIP/SOP/MSOP/TSSOP/UDFN Pb-free packages.
