产品简介 :

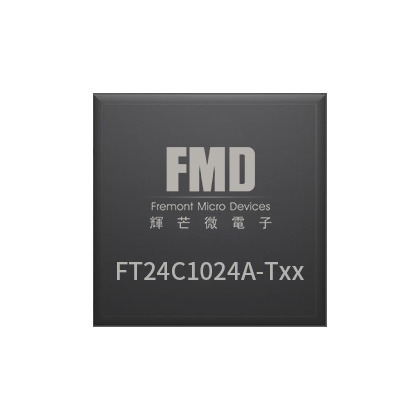

The FT24C1024A series are 1,048,576 bits of serial Electrical Erasable and Programmable Read Only Memory, commonly known as EEPROM. They are organized as 131,072 words of 8 bits (one byte) each. The devices are fabricated with proprietary advanced CMOS process for low power and low voltage applications. These devices are available in standard 8-lead DIP, and 8-lead SOP packages. A standard 2-wire serial interface is used to address all read and write functions. Our extended VCC range (1.8V to 5.5V) devices enables wide spectrum of applications.

产品特点 :

 Low voltage and low power operations:

 FT24C1024A: VCC = 1.8V to 5.5V

 256 bytes page write mode.

 Partial page write operation allowed.

 Internally organized: 131,072 X 8 (1024K).

 Standard 2-wire bi-directional serial interface.

 Schmitt trigger, filtered inputs for noise protection.

 Self-timed programming cycle (5ms maximum).

 Automatic erase before write operation.

 Write protect pin for hardware data protection.

 High reliability: typically 1,000,000 cycles endurance.

 40 years data retention.

 Industrial temperature range (-40o C to 85o C).

 Standard 8-pin DIP/SOP/TSSOP Pb-free packages.
