产品简介 :

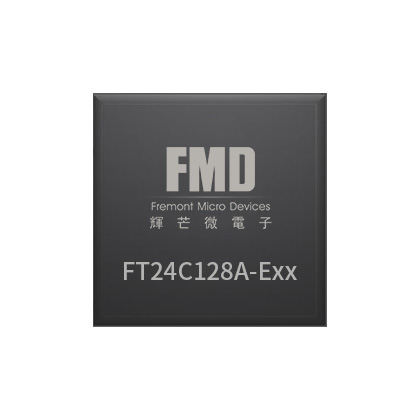

The FT24C128A series are 131,072 bits of serial Electrical Erasable and Programmable Read Only Memory, commonly known as EEPROM. They are organized as 16,384 words of 8 bits (one byte) each.  The devices are fabricated with proprietary advanced CMOS process for low power and low voltage applications.  These devices are available in standard 8-lead DIP, 8-lead SOP, 8-lead MSOP, 8-lead TSSOP, and 8-lead UDFN  packages.  A standard 2-wire serial interface is used to address all read and write functions.  Our extended VCC range (1.8V to 5.5V) devices enables wide spectrum of applications.

产品特点 :

Low voltage and low power operations:

    FT24C128A:  VCC = 1.8V to 5.5V

64 bytes page write mode.

Partial page write operation allowed.

Internally organized: 16,384 ×8 (128K).

Standard 2-wire bi-directional serial interface.

Schmitt trigger, filtered inputs for noise protection.

Self-timed write cycle (5ms maximum).

1 MHz (2.5-5 V), 400 kHz (1.8V) Compatibility.

Automatic erase before write operation.

Write protect pin for hardware data protection.

High reliability: typically 1,000,000 cycles endurance.

100 years data retention.

Industrial temperature range (-40℃ to 85℃).

Standard 8-lead DIP/SOP/MSOP/TSSOP/UDFN Pb-free packages.
